400 Series Shinkansen

400 Series Shinkansen

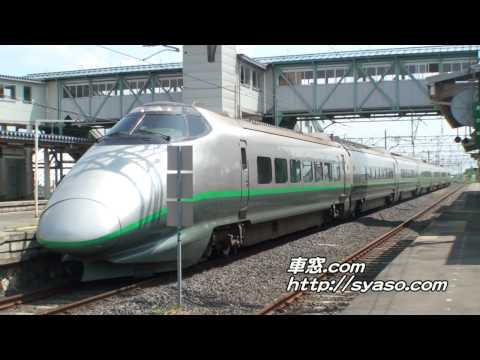

400 series on Tsubasa service at Yonezawa Station, March 2005
Train information
Name400 series
In service1992-2010
ManufacturerHitachi, Kawasaki Heavy Industries, Tokyu Car Corporation
Family nameMini-shinkansen
Constructed1992 - 1995
Refurbishment1999 - 2001
Scrapped2008 - 2010
Number built84 vehicles (12 sets)
Number in serviceNone
Number preserved1 vehicle
Number scrapped83 vehicles
Formation7 cars per trainset
Fleet numbersL1 - L12
Capacity399 (20 Green + 379 Standard)
OperatorJR East
DepotsYamagata
Lines servedTōhoku Shinkansen, Yamagata Shinkansen
Specifications
Car body constructionSteel
Car length22825 mm (22.8 m) (end cars)
20500 mm (20.5 m) (intermediate cars)
Width2947 mm (2.9 m)
Doorsone per side
Maximum speed240 km/h (0.2 m) (Tōhoku Shinkansen)
130 km/h (0.1 m) (Yamagata Shinkansen)
Acceleration1.6 km/h/s
Deceleration2.6 km/h/s
Traction system24 x 210 kW (0.2 m)
Power output5.04 MW (0 m)
Electric system20/25 kV AC, 50 Hz overhead catenary
Current collection methodPantograph
Safety systemATC-2, DS-ATC, ATS-P
Gauge1435

     Home | Train | 400 Series Shinkansen



The

|} was a Japanese Shinkansen high-speed train type operated by East Japan Railway Company (JR East) between 1992 and 2010 on Tsubasa services on Japan's first Mini-shinkansen line, the Yamagata Shinkansen branch from the main Tōhoku Shinkansen.

The fleet of 400 series trains was leased by JR East from the owning company,

|}, a third-sector company jointly owned by JR East and Yamagata Prefecture.

They were originally six-car sets, but a seventh car (type 429) was added in 1995 to each set due to the popularity of the new Tsubasa services.

The fleet of twelve 400 series trains was scheduled to be withdrawn between December 2008 and summer 2009, replaced by new E3-2000 series trains. However, one set, L3, remained in service until 18 April 2010, with the date chosen to mark 18 years of service.

400 Series Shinkansen Video

ããã¾ã§è¿ãåç»ã¯ãªãã¨æã⪠æ°å¹¹ç·ã®ééãéè¿ã§æ®å½±ãã¾ããï¼ ä¸çã«èªãSuper Express SHINKANSENâ -------------------- ãã£ã³ãã«ç»é²ãã¦ã­ã Youtube http://www.youtube.com/user/e333t âTwitterãã©ã­ã¼ ht...
0.28 min. | 4.28 user rating
ãããã¼ã»ããããã©ã¬ã¼ã«ããã¤ãªãã¦ã¿ã¾ããã å­ä¾ãæã¡æ­©ãã®ã«ä¸åº¦è¯ããµã¤ãºã§ãã I tried to connect the Happy Meal "Plarail ". Is just a good size to carry the child.
0.98 min. | 2.66 user rating
2008å¹´2æ15æ¥ï½17æ¥æ®å½±ã â Yamagata Shinkansen â Super-Express TSUBASA â JR East Japan Railway Company â Yamagata station.
4.10 min. | 0 user rating
Yamagata Shinkansen â Super-Express TSUBASA â June 21 2008(2008/06/21) â JR East Japan Railway Company â Yonezawa station.
4.67 min. | 0 user rating
400ç³»( TOMIX 92758) E3ç³»1000çªå°( TOMIX 92726)
0.38 min. | 5.0 user rating
Yamagata Shinkansen â Super-Express TSUBASA â June 22 2008(2008/06/22) â JR East Japan Railway Company â Yonezawa station.
4.35 min. | 0 user rating
Yamagata Shinkansen â Super-Express TSUBASA â June 21 2008(2008/06/21) â JR East Japan Railway Company â Akayu station.
3.70 min. | 0 user rating
We are called mini-Shinkansen. But ability is a bullet train. Speed ââhas recorded more than 400KM / H in the run up to the test.
0.52 min. | 5.0 user rating
Yamagata Shinkansen â Super-Express TSUBASA â June 21 2008(2008/06/21) â JR East Japan Railway Company â Yonezawa station.
3.38 min. | 0 user rating
Nã²ã¼ã¸ æ°å¹¹ç·400ç³»E4ç³» 15両編æ 並走ã­ã¼ã¬ã¹ã«ã¡ã©æ®å½±ã 1300åã®ã­ã¼ã¬ã¹ã«ã¡ã©ã貨ç©ã®å°è»ã®ä¸ã«åãä»ã㦠EF66ã§ä¸¦èµ°ããªããè»ä¸¡åæ¹ããèµ°è¡ã·ã¼ã³ãæ®å½±ãã¾ããã N-gauge Bullet Train Series E4 Series 400 Shinkansen.
19.73 min. | 3.0 user rating

Latest News : 400 Series Shinkansen : Tweet this RSS

Want to 400 Series Shinkansen latest news on your twitter account???   sign in with twitter
400 Series Shinkansen     sign in with twitter   ||  Train     sign in with twitter   ||  Other     sign in with twitter
Schnell , sauber, pünktlich: Auch so kann Bahn sein - nachrichten.at Tweet this news
nachrichten.at--Wer die knapp -400- Kilometer von Tokio nach Sendai mit dem Zug zurücklegt, benötigt dafür gerade einmal unschlagbare 90 Minuten. Der -Shinkansen- ... - Date : Thu, 14 Oct 2010 05:51:24 GMT+00:00
Japan-Blog - Im Land der alternden Wirtschaftsmacht - Krone.at Tweet this news
Krone.at--Also auf nach Sendai mit dem Superschnellzug "-Shinkansen- Komachi", der die -400- Kilometer ab Tokio in 90 Minuten durchrast. Dort wird an der Tohuku Fukushi- ... - Date : Thu, 14 Oct 2010 06:40:48 GMT+00:00

Car No. 1 2 3 4 5 6
Numbering 401-1 402-1 403-1 404-1 405-1 406-1
Seating capacity 20 67 60 68 64 56

Car No. 11 12 13 14 15 16 17
Designation Msc M' M M' T M M'c
Numbering 411 426-200 425 426 429 425 422
Seating capacity 20 67 60 68 64 64 56

Set No. Manufacturer Delivered 7th car added Refurbished DS-ATC added Withdrawn Remarks
L1 Tokyu Car, Hitachi, Kawasaki HI 1 November 1990 14 November 1995 3 March 2000 27 July 2005 1 January 2009 Originally pre-production set S4, converted 29 June 1992.
L2 Kawasaki HI 17 January 1992 20 November 1995 14 September 2001 7 October 2005 23 January 2009
L3 Kawasaki HI 28 January 1992 2 December 1995 11 June 2001 12 September 2005 18 April 2010 Last set to be withdrawn. Car 411-3 stored pending preservation.
L4 Kawasaki HI 6 March 1992 12 December 1995 16 December 1999 28 May 2005 18 September 2009 First set to be refurbished and reliveried.
L5 Kawasaki HI 23 March 1992 10 December 1995 28 July 2000 26 November 2005 21 April 2009
L6 Kawasaki HI 2 April 1992 8 December 1995 16 October 2001 24 December 2005 26 May 2009
L7 Kawasaki HI 13 April 1992 6 December 1995 19 September 2000 2 November 2005 15 May 2009
L8 Kawasaki HI 1 May 1992 4 December 1995 19 June 2000 24 June 2005 3 April 2009
L9 Kawasaki HI 11 May 1992 20 December 1995 14 April 2000 22 March 2006 21 February 2009 Car 15 built by Hitachi.
L10 Kawasaki HI 29 May 1992 14 December 1995 30 March 2001 28 February 2006 7 August 2009 Car 15 built by Hitachi.
L11 Kawasaki HI 12 June 1992 16 December 1995 19 February 2001 6 February 2006 20 June 2009 Car 15 built by Hitachi.
L12 Kawasaki HI 25 June 1992 18 December 1995 29 May 2000 27 April 2005 19 March 2009 Car 15 built by Hitachi.
